Part-turn actuators

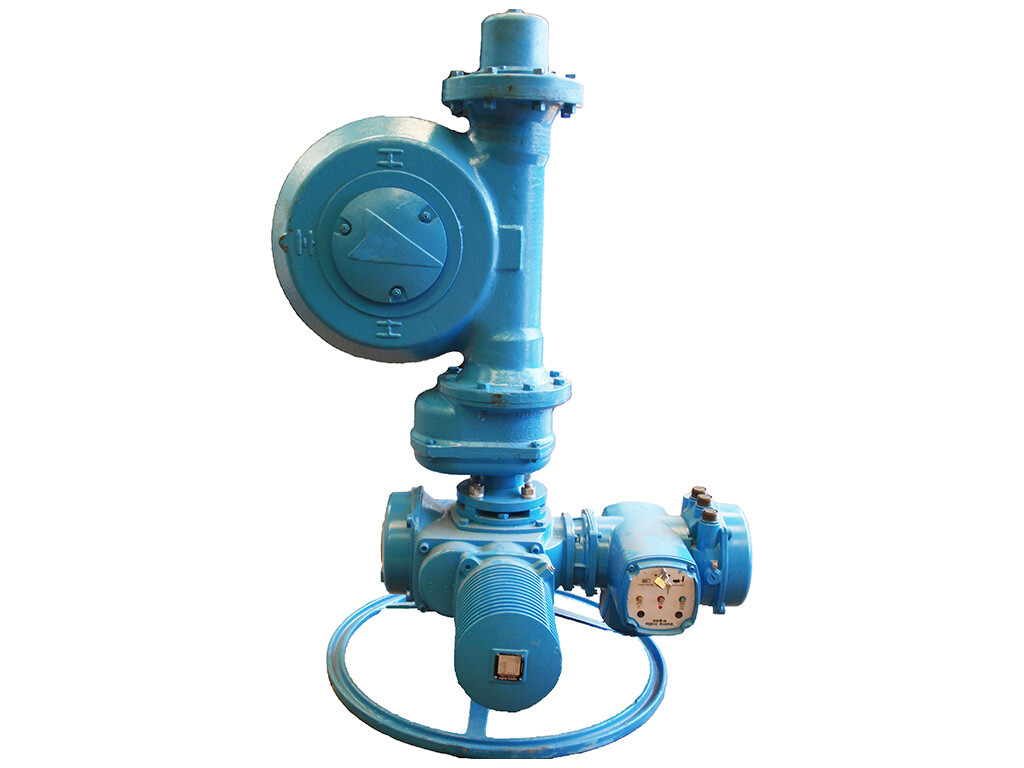

Combinations with part-turn gearboxes GS

By combining the multi-turn actuators SA with the worm gearboxes GS (Swing angles 80º - 135°), they are turned into electric part-turn actuators for higher torque requirements.

Design features

  • Torque range up to 360000 Nm
  • Swing angles 80º - 135°
  • Wide range of operating time for various applications
  • Self-retaining
  • Hand wheel for manual operation
  • Full worm wheel design

Ambient conditions

  • High enclosure protection
  • High quality corrosion protection
  • Wide ambient temperature ranges

Options

  • Other swing angles on request

Interfaces

  • Electrical connection via AUMA plug & socket connector or terminals
  • Output drive types according to ISO 5210 and DIN 3210 standard
  • Cable glands in different versions:
    • Standard : Metric
    • Optional : BSC, NPT

Specifications

Key information at a glance

Design features

Service conditions
